Residential ESS

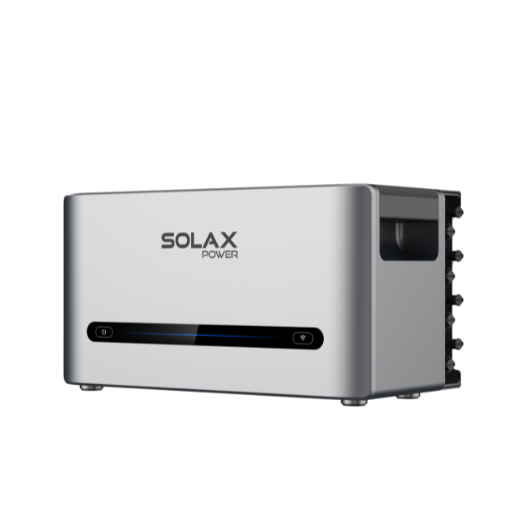

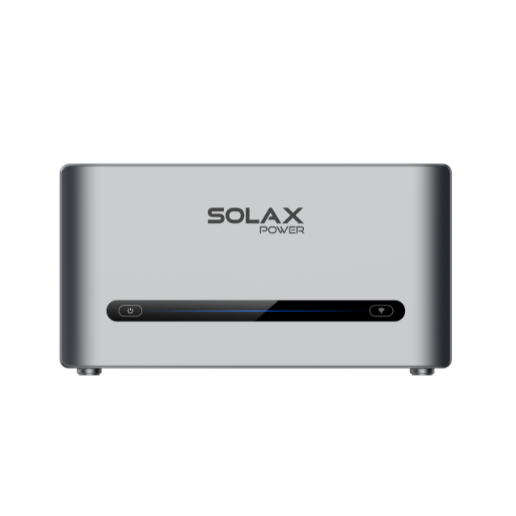

X-MS 2000

All-In-One Balcony ESS

This all-in-one balcony energy storage system offers a powerful, plug-and-play solution designed for micro home energy solution. With up to 2400W solar input across 4 MPPTs and scalable battery capacity expandable to 11.98kWh, it combines ultra-fast installation, reliable off-grid capability, and intelligent energy management.

Download de Dados

Product Advantage

Power & Performance

Up to 2400W solar input with 4 MPPTs
Max charging power 3400W, 1000W bidirectional AC power
UPS-level switchover time <10ms
Long-lasting power with 6000 charge cycles

System Design & Installation

All-in-one compact design, plug-and-play installation
DIY expansion to 11.98 kWh capacity

Environmental Resilience

IP65 ingress protection
Built-in battery heating function, reliable performance in extreme temperature (-20°C)

Efficiency & Sustainability

Zero waste with self-consumption
Support TOU mode to maximize family benefits

Product Parameters

X-MS 2000

X-MS 2000
- ENTRADA PV

  Max. ENTRADA PV Potência
  2400 W
  Max. ENTRADA PV Tensão
  60 V
  Operation Tensão range
  16 ~ 60 V
  No. of MPP trackers
  4
- AC ON-GRID

  Rated Input / output apparent Potência
  800 VA
  * It can be customized by using the Solax App and can be adjusted up to 1000 VA
  Rated SAÍDA AC Tensão
  220 V / 230 V / 240 V
- BATTERY DATA

  Tipo de Bateria
  LFP
  Max. discharging current
  100 A
- LIMITE AMBIENTAL

  Proteção de entrada IP65
  Dimensões (W × H × D)
  460 x 240 x 240 mm
  Peso líquido
  24 kg
- STANDARD

  Safety
  IEC62109-1 / -2
  EMC IEC62619, UN38.3, IEC / EN 61000-6-1, IEC / EN 61000-6-2, IEC / EN 61000-6-3, IEC / EN 61000-6-4，CE-RED

Download de Dados

Folha de Dados

English

Português

Nome do Arquivo

Idioma

Formato

Tamanho

Última atualização

Download

Para receber o boletim informativo mais recente

Fique por Dentro das Últimas Atualizações do SolaX!

Registrar

Li e concordo com a Política de Privacidade e os Termos do Usuário

Max. ENTRADA PV Potência	2400 W
Max. ENTRADA PV Tensão	60 V
Operation Tensão range	16 ~ 60 V
No. of MPP trackers	4

Proteção de entrada	IP65
Dimensões (W × H × D)	460 x 240 x 240 mm
Peso líquido	24 kg

Safety	IEC62109-1 / -2
EMC	IEC62619, UN38.3, IEC / EN 61000-6-1, IEC / EN 61000-6-2, IEC / EN 61000-6-3, IEC / EN 61000-6-4，CE-RED

Tipo de Bateria	LFP
Max. discharging current	100 A
