C&I ESS
ESS-TRENE 1MWh
-
249kW-500kW | 1044 kWh

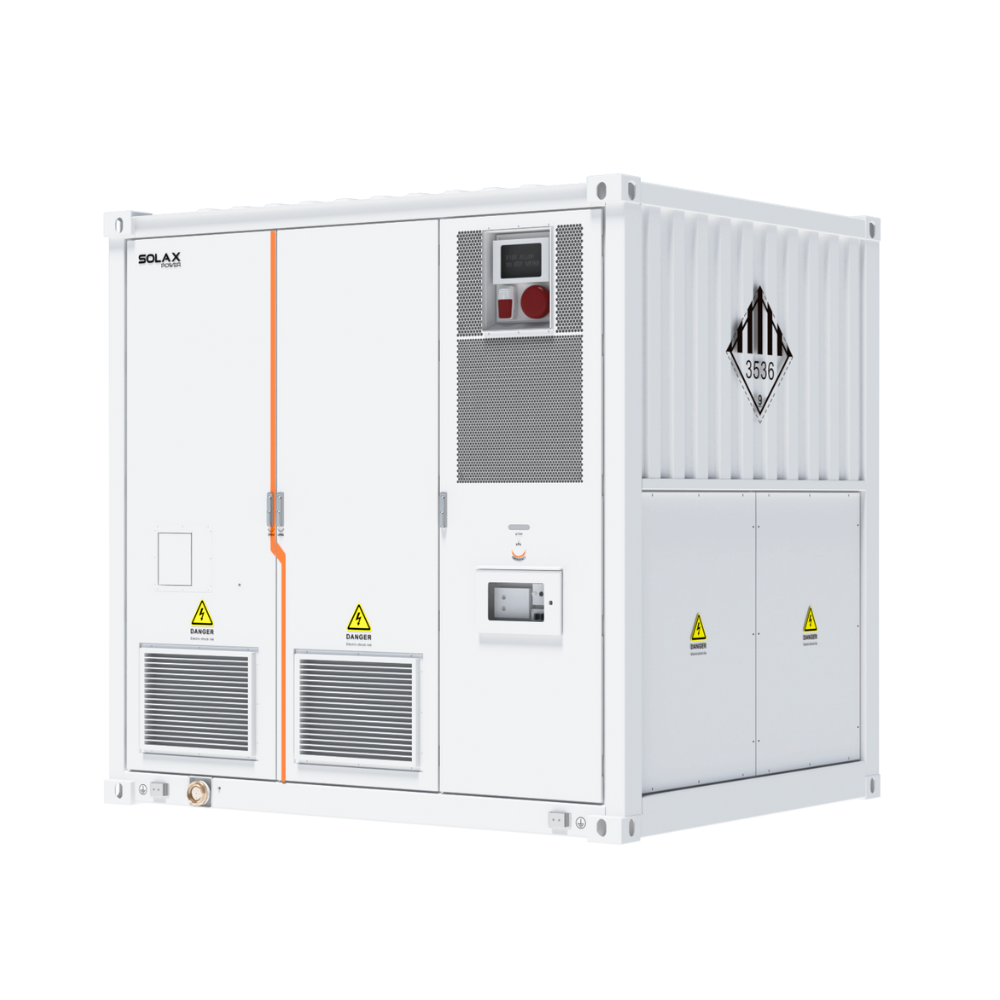

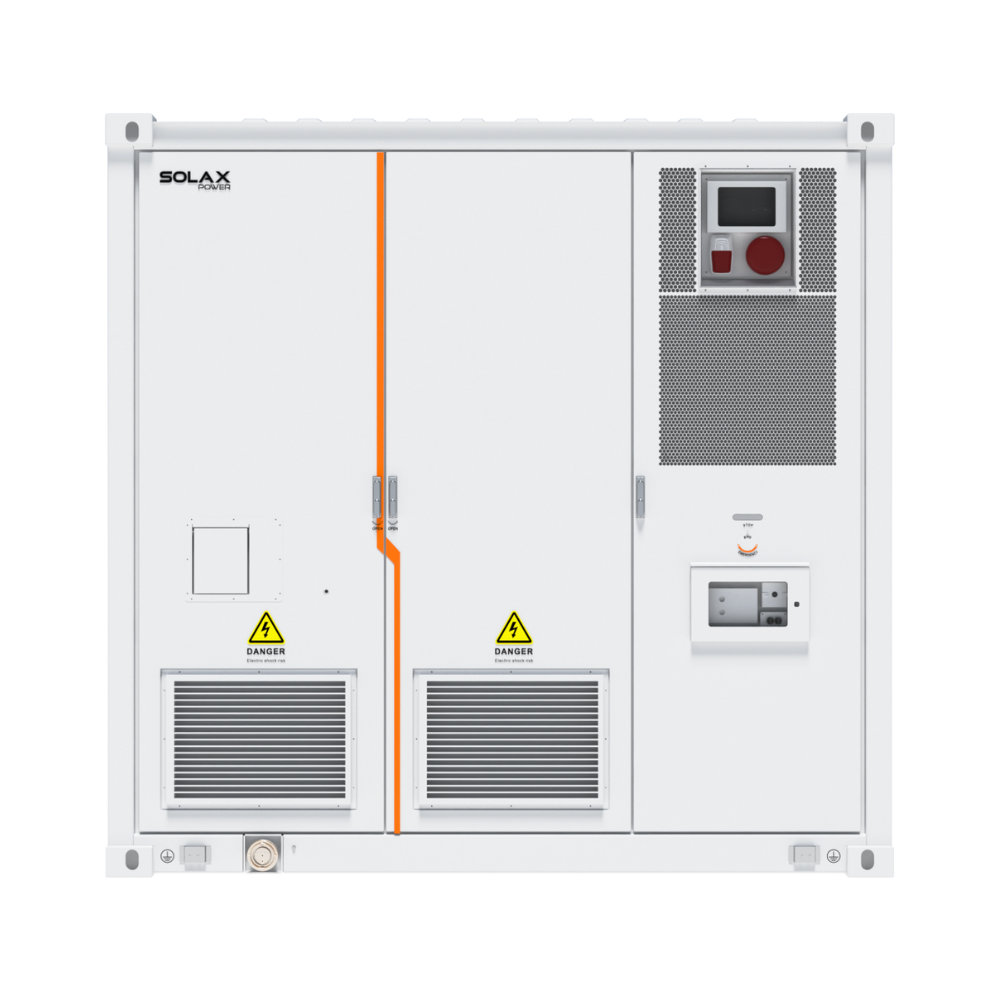

The SolaX Energy Storage System (ESS) - TRENE is an advanced liquid cooling solution designed for large-scale energy storage needs. With a 1044 kWh stand-alone capacity and 249kW-500kW output, this versatile system is ideal for factories and so on. TRENE Liquid Cooling ESS is easily expandable to multiple megawatt-hours, offering scalability for a range of energy needs.
-
Assista ao Vídeo
Product Advantage
The SolaX TRENE ESS features advanced liquid cooling technology that ensures optimal performance by maintaining cell temperature differences under 3°C. With a robust 314Ah LFP battery, it guarantees long-term reliability. Safety is a top priority, with a four-level fire protection system in place. Powered by intelligent energy management through the SolaXCloud, TRENE offers real-time monitoring and effortless operation, making it the perfect choice for C&I energy storage solutions.
Assured Safety
4+1 Fire safety design secures minimal risk and loss
Aerosol Fire Suppression for Precise Protection
IP67 for battery, IP66 for inverter, IP55 for cabinet
Advanced fault detection and response
High Performance
Premium LFP battery with guaranteed quality
High power density, compact design
Scalable up to MWh
Optimised space utilisation
Intelligent Design
Advanced energy management system
VPP ready with SolaX Cloud (IEEE 2030.5, OpenADR)
Supporting remote monitoring and maintenance
Supporting a variety of C＆I energy storage scenarios
Flexible Adaptability
Grid-connected and off-grid support (with SolaX switching cabinet)
Full-stack self-developed BMS, EMS, PCS & SolaXCloud
One year of local historical data storage
Cell-level balancing and smart temperature control
Product Parameters
-
TRENE-P249B1044L-4H-
AC SIDE (ON-GRID)
Rated AC power 249 kW Rated AC voltage 3/N/PE,230/400 V
3/N/PE,220/380 V
Rated AC frequency 50 Hz / 60 Hz -
DC SIDE
Battery type LFP / 314 Ah Battery capacity 1044 kWh Rated battery voltage 832 V -
SYSTEM PARAMETER
Dimensions (W×D×H) 2991 x2896 x2438 mm Weight 13 t Operating temperature range -30 ~ 55°C (＞45℃ derating) Max. operation altitude 3000 m Cooling concept
Liquid cooling Ingress protection IP55
-
-
TRENE-P250B1044L-4H-
AC SIDE (ON-GRID)
Rated AC power 250 kW Rated AC voltage 3/N/PE,230/400 V
3/N/PE,220/380 V
Rated AC frequency 50 Hz / 60 Hz -
DC SIDE
Battery type LFP / 314 Ah Battery capacity 1044 kWh Rated battery voltage 832 V -
SYSTEM PARAMETER
Dimensions (W×D×H) 2991 x2896 x2438 mm Weight 13 t Operating temperature range -30 ~ 55°C (＞45℃ derating) Max. operation altitude 3000 m Cooling concept
Liquid cooling Ingress protection IP55
-
-
TRENE-P499B1044L-2H-
AC SIDE (ON-GRID)
Rated AC power 499.6 kW Rated AC voltage 3/N/PE,230/400 V
3/N/PE,220/380 V
Rated AC frequency 50 Hz / 60 Hz -
DC SIDE
Battery type LFP / 314 Ah Battery capacity 1044 kWh Rated battery voltage 832 V -
SYSTEM PARAMETER
Dimensions (W×D×H) 2991 x2896 x2438 mm Weight 13 t Operating temperature range -30 ~ 55°C (＞45℃ derating) Max. operation altitude 3000 m Cooling concept
Liquid cooling Ingress protection IP55
-
-
TRENE-P500B1044L-2H-
AC SIDE (ON-GRID)
Rated AC power 500kW Rated AC voltage 3/N/PE,230/400 V
3/N/PE,220/380 V
Rated AC frequency 50 Hz / 60 Hz -
DC SIDE
Battery type LFP / 314 Ah Battery capacity 1044 kWh Rated battery voltage 832 V -
SYSTEM PARAMETER
Dimensions (W×D×H) 2991 x2896 x2438 mm Weight 13 t Operating temperature range -30 ~ 55°C (＞45℃ derating) Max. operation altitude 3000 m Cooling concept
Liquid cooling Ingress protection IP55
-
