Battery Accessories

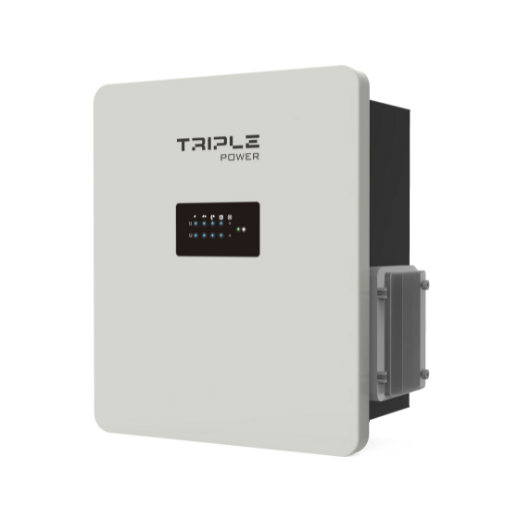

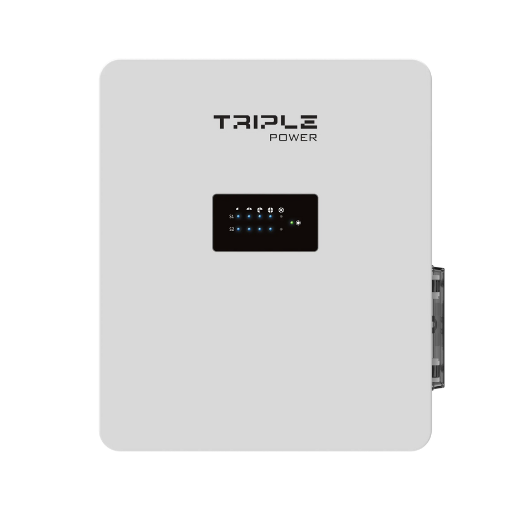

BMS-Parallel Box-II G2

Compatible with T-BAT-SYS-HV-3.0, T-BAT-SYS-HV-5.8

Compatible with T-BAT-SYS-HV-3.0 and T-BAT-SYS-HV-5.8 models, it supports two-column parallel configurations, enabling seamless scalability for ESS applications. This smart layout optimizes inverter capacity usage while minimizing system complexity.

Assista ao Vídeo
Download de Dados

Product Advantage

Engineered to optimize energy output, the BMS Parallel Box-II G2 effortlessly expands battery capacity and prolongs battery lifespan. By supporting parallel connection of two battery strings, it enhances ESS (Energy Storage System) performance with greater operating efficiency and longer runtime.

Adaptabilidade Flexível

Suporta conexão paralela de duas colunas
Suporte T-BAT-SYS-HV-3.0, T-BAT SYS-HV-5.8

Desempenho Fiável

Expanda Facilmente a Capacidade
Prolonga a vida útil da Bateria

Product Parameters

BMS-PARALLEL BOX-II G2

BMS-PARALLEL BOX-II G2
- GERAL

  Dimensões (W × H × D) 368 x 334 x 153.5 mm
  Peso 8.7 kg
  Vida útil prevista 5 anos
  Proteção IP65
- REQUISITOS AMBIENTAIS

  Gama de tensão de entrada / saída 70 ~ 550 V
  Potência Norma 11.5 kW
  Maximum Potência 16.1 kW
- CERTIFICATION

  Segurança IEC / EN 62477-1, IEC / EN 61439-1, IEC / EN 61439-2
  EMC EN 61000-6-1 / 2 / 3 /4
