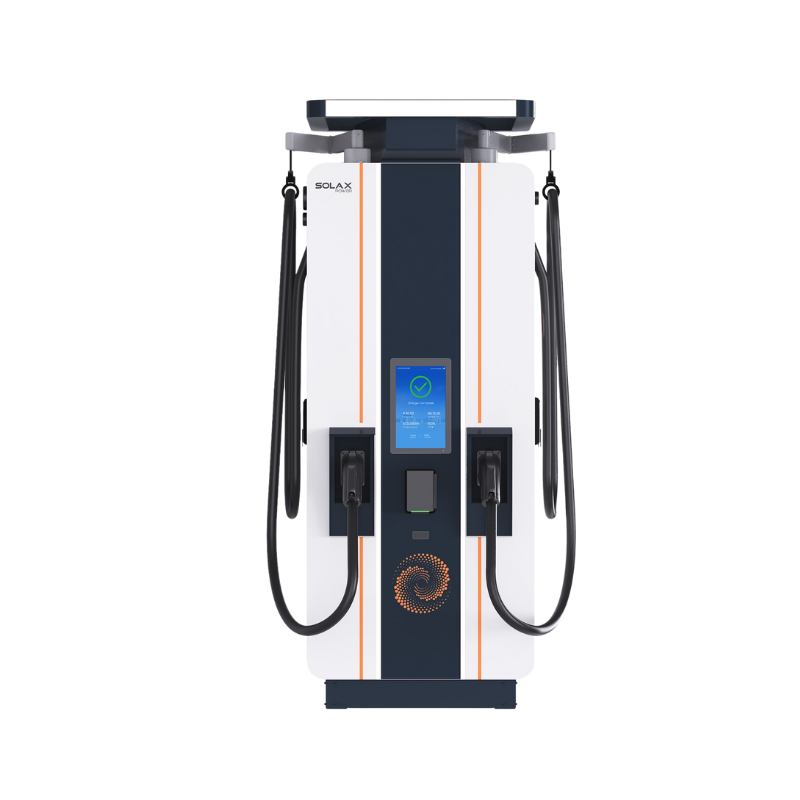

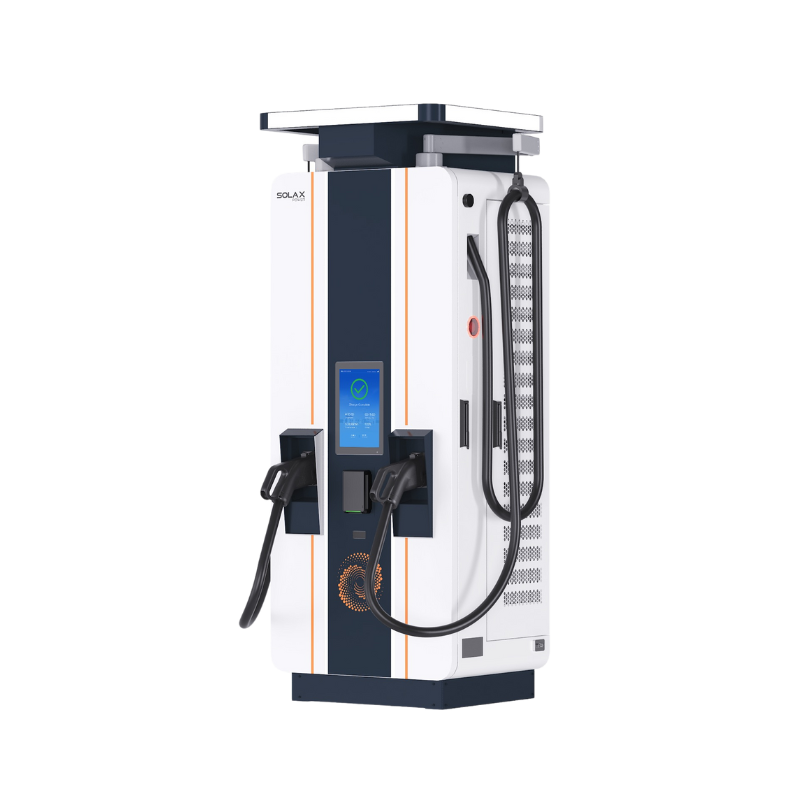

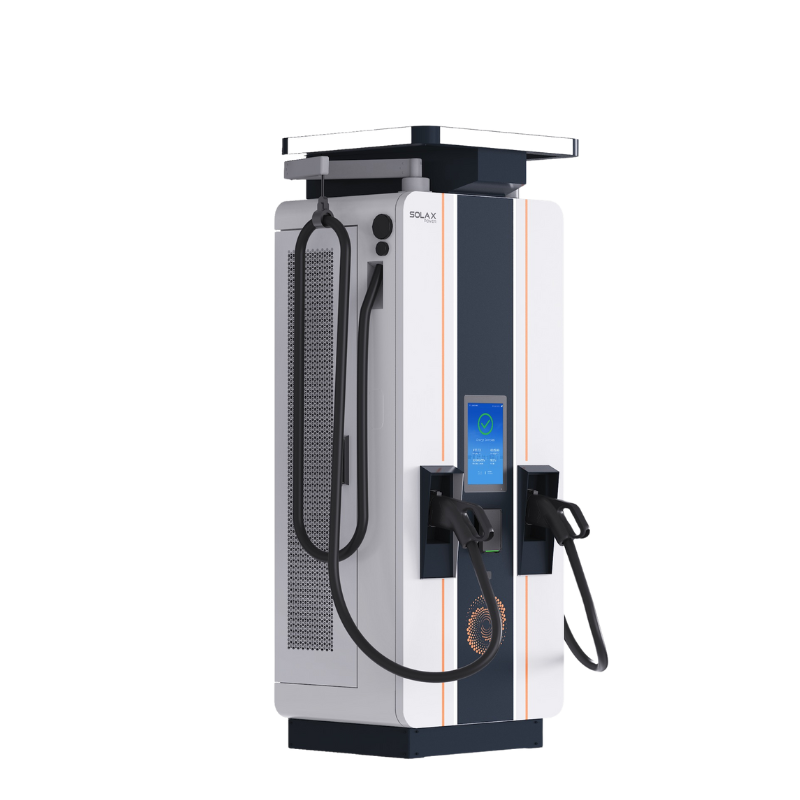

C&I EV Charger
Fast DC Charger
-
120kW/180kW/240kW/300kW/360kW
This fast DC charger features an all-in-one structure with flexible installation options, making ideal for a wide range of applications. The 12.1-inch high-contrast HMl display enhances user experience, and ensures seamless integration and easy operation.
Product Advantage
By combining dynamic EMS power control with a full PV-ESS-EV solution, this charger inteligently balances energy usage, minimizes peak load impact, and adapts to real-time EV demand.
Supporting a wide voltage range (200-1000V), it maximizes green energy use, and reduces energy costs-making it the ideal choice for sustainable charging infrastructures.
Flexible Adaptability
All-in-one design, easy and quick installation, compact and lightweight structure can be flexibly installed in various positions.
The voltage range of 200-1000V is suitable for all current mainstream charging scenarios.
High Efficiency
Intelligently distribute charging power to meet the charging needs of different EVs.
Support EMS intelligent dynamic power control, and form an integrated PV-ESS-EV Solution.
Assured Safety
Safe and reliable, with multiple fault protection.
Equipped with cable management system to enhance user experience.
Intelligent Design
Support OCPP1.6J protocol to access third-party operation platform.
Support multiple network communication (Ethernet / Wi-Fi / 4G).
Integrated smart HMI: 12.1-inch high-contrast LCD.
Product Parameters
-
FDC-120-EU-
ENTRADA NOMINAL AC
Tensão 400V ± 15% Earthing system TN-S / TT -
DC NOMINAL OUTPUT
Potência 120 kW -
INTERFACE
Interface de comunicação Ethernet / 4G / Wi-Fi -
LIMITE AMBIENTAL
Charge connector Dual（CCS2 + CCS2） Enclosure ratings IP54
Método de arrefecimento Air-cooling Peso líquido 400 kg Dimensões (W × H × D) 750 × 2000 × 600 mm
-
-
FDC-180-EU
-
ENTRADA NOMINAL AC
Tensão 400V ± 15% Earthing system TN-S / TT -
DC NOMINAL OUTPUT
Potência 180 kW -
INTERFACE
Interface de comunicação Ethernet / 4G / Wi-Fi -
LIMITE AMBIENTAL
Charge connector Dual（CCS2 + CCS2） Enclosure ratings IP54
Método de arrefecimento Air-cooling Peso líquido 480 kg Dimensões (W × H × D) 750 × 2000 × 600 mm
-
-
FDC-240-EU
-
ENTRADA NOMINAL AC
Tensão 400V ± 15% Earthing system TN-S / TT -
DC NOMINAL OUTPUT
Potência 240 kW -
INTERFACE
Interface de comunicação Ethernet / 4G / Wi-Fi -
LIMITE AMBIENTAL
Charge connector Dual（CCS2 + CCS2） Enclosure ratings IP54
Método de arrefecimento Air-cooling Peso líquido 530 kg Dimensões (W × H × D) 830 × 2050 × 740 mm
-
-
FDC-300-EU
-
ENTRADA NOMINAL AC
Tensão 400V ± 15% Earthing system TN-S / TT -
DC NOMINAL OUTPUT
Potência 300 kW -
INTERFACE
Interface de comunicação Ethernet / 4G / Wi-Fi -
LIMITE AMBIENTAL
Charge connector Dual（CCS2 + CCS2） Enclosure ratings IP54
Método de arrefecimento Air-cooling Peso líquido 570 kg Dimensões (W × H × D) 830 × 2050 × 740 mm
-
-
FDC-360-EU
-
ENTRADA NOMINAL AC
Tensão
400V ± 15%
Earthing system TN-S / TT -
DC NOMINAL OUTPUT
Potência 360 kW -
INTERFACE
Interface de comunicação Ethernet / 4G / Wi-Fi -
LIMITE AMBIENTAL
Charge connector Dual（CCS2 + CCS2） Enclosure ratings IP54
Método de arrefecimento Air-cooling Peso líquido 610 kg Dimensões (W × H × D) 830 × 2050 × 740 mm
-
