C & I Batteries

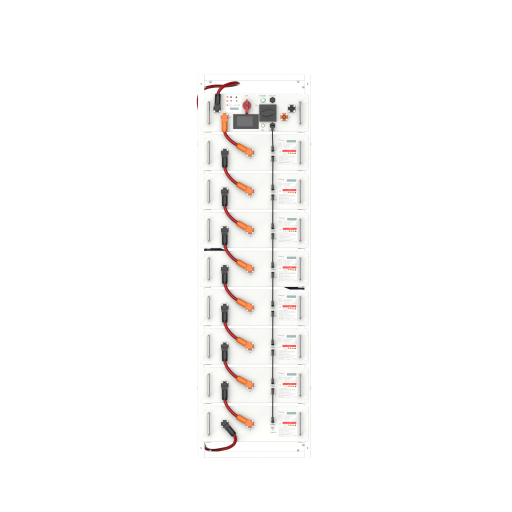

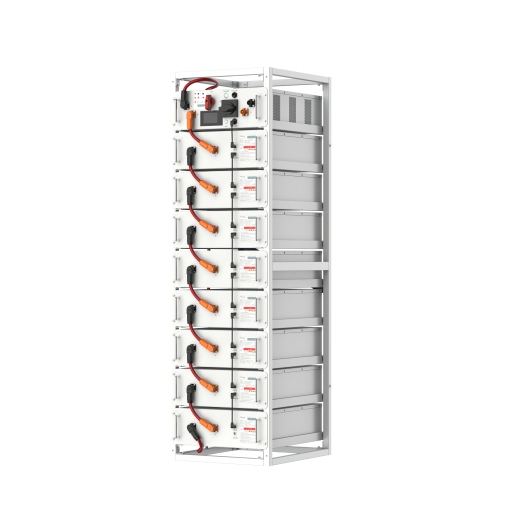

TSYS-HR76

7.68 kWh | LFP 150Ah

Equipped with a high-safety LFP battery, the TSYS-HR76 is designed for reliable and efficient energy storage. It supports 1C continuous operation for over 30 minutes, ensuring stable output under demanding conditions. With scalable battery clustering from 5 to 14 modules per set, it offers flexible configuration to meet varying project needs.

Download de Dados

Product Advantage

The TSYS-HR76 is built for flexibility and reliable operation, offering an operating temperature range of 0°C to 55°C for charging and -20°C to 55°C for discharging. Its scalable design allows for 5 to 14 modules per set, delivering a nominal voltage range from 256.0 V to 716.8 V. With rated power spanning from 23.0 kW to 64.5 kW, it ensures adaptable performance across diverse commercial and industrial energy storage applications.

Efficiency

Delivers sustained 1C performance for short duration*

*Under ambient temperature of 25 ± 2°C, each instance of continuous 1C operation should not exceed 0.5 hours

Embedded installation design for rapid deployment
Modular architecture for streamlined maintenance

Intelligence

Automated charge/discharge management
Multi-level protection: overcharge, over-discharge, thermal extremes

Reliability

High-safety LFP battery
Extended cycle life for long-term performance

Flexible Configuration

Scalable battery cluster (5–14 modules per set)
Remote firmware upgrade support
Full compatibility with SolaX inverters

Product Parameters

T-HR38.4 / T-HR38.4P
T-HR46.0 / T-HR46.0P
T-HR53.7 / T-HR53.7P
T-HR61.4 / T-HR61.4P
T-HR69.2 / T-HR69.2P
T-HR76.8 / T-HR76.8P
T-HR84.4 / T-HR84.4P
T-HR92.1 / T-HR92.1P
T-HR99.8 / T-HR99.8P
T-HR107.5 / T-HR107.5P

T-HR38.4 / T-HR38.4P
- SYSTEM SPECIFICATION

  Module quantities
  5
  Nominal energy
  38.4 kWh
  Tensão nominal
  256.0 V
  Max. charge / discharge current
  150 A
  Rated Potência
  23.0 kW
- BATTERY MODULE

  BATERIA
  TB-HR76
  Nominal energy
  7.68 kWh
  Tensão nominal
  51.2 V
  Rated capacity
  150 Ah
  Dimensões (W × H × D)
  450 × 180 × 580 mm
  Peso
  60 kg
- LIMITE AMBIENTAL

  Operating temperature range
  0 ~ 55°C (charge)
  -20 ~ 55°C (discharge)
  Max.operating altitude
  3000 m
  Ambiente
  Indoor
T-HR46.0 / T-HR46.0P
- SYSTEM SPECIFICATION

  Module quantities
  6
  Nominal energy
  46.0 kWh
  Tensão nominal
  307.2 V
  Max. charge / discharge current
  150 A
  Rated Potência
  27.6 kW
- BATTERY MODULE

  BATERIA
  TB-HR76
  Nominal energy
  7.68 kWh
  Tensão nominal
  51.2 V
  Rated capacity
  150 Ah
  Dimensões (W × H × D)
  450 × 180 × 580 mm
  Peso
  60 kg
- LIMITE AMBIENTAL

  Operating temperature range
  0 ~ 55°C (charge)
  -20 ~ 55°C (discharge)
  Max.operating altitude
  3000 m
  Ambiente
  Indoor
T-HR53.7 / T-HR53.7P
- SYSTEM SPECIFICATION

  Module quantities
  7
  Nominal energy
  53.7 kWh
  Tensão nominal
  358.4 V
  Max. charge / discharge current
  150 A
  Rated Potência
  32.2 kW
- BATTERY MODULE

  BATERIA
  TB-HR76
  Nominal energy
  7.68 kWh
  Tensão nominal
  51.2 V
  Rated capacity
  150 Ah
  Dimensões (W × H × D)
  450 × 180 × 580 mm
  Peso
  60 kg
- LIMITE AMBIENTAL

  Operating temperature range
  0 ~ 55°C (charge)
  -20 ~ 55°C (discharge)
  Max.operating altitude
  3000 m
  Ambiente
  Indoor
T-HR61.4 / T-HR61.4P
- SYSTEM SPECIFICATION

  Module quantities
  8
  Nominal energy
  61.4 kWh
  Tensão nominal
  409.6 V
  Max. charge / discharge current
  150 A
  Rated Potência
  36.8 kW
- BATTERY MODULE

  BATERIA
  TB-HR76
  Nominal energy
  7.68 kWh
  Tensão nominal
  51.2 V
  Rated capacity
  150 Ah
  Dimensões (W × H × D)
  450 × 180 × 580 mm
  Peso
  60 kg
- LIMITE AMBIENTAL

  Operating temperature range
  0 ~ 55°C (charge)
  -20 ~ 55°C (discharge)
  Max.operating altitude
  3000 m
  Ambiente
  Indoor
T-HR69.2 / T-HR69.2P
- SYSTEM SPECIFICATION

  Module quantities
  9
  Nominal energy
  69.1 kWh
  Tensão nominal
  460.8 V
  Max. charge / discharge current
  150 A
  Rated Potência
  41.4 kW
- BATTERY MODULE

  BATERIA
  TB-HR76
  Nominal energy
  7.68 kWh
  Tensão nominal
  51.2 V
  Rated capacity
  150 Ah
  Dimensões (W × H × D)
  450 × 180 × 580 mm
  Peso
  60 kg
- LIMITE AMBIENTAL

  Operating temperature range
  0 ~ 55°C (charge)
  -20 ~ 55°C (discharge)
  Max.operating altitude
  3000 m
  Ambiente
  Indoor
T-HR76.8 / T-HR76.8P
- SYSTEM SPECIFICATION

  Module quantities
  10
  Nominal energy
  76.8 kWh
  Tensão nominal
  512.0 V
  Max. charge / discharge current
  150 A
  Rated Potência
  46.0 kW
- BATTERY MODULE

  BATERIA
  TB-HR76
  Nominal energy
  7.68 kWh
  Tensão nominal
  51.2 V
  Rated capacity
  150 Ah
  Dimensões (W × H × D)
  450 × 180 × 580 mm
  Peso
  60 kg
- LIMITE AMBIENTAL

  Operating temperature range
  0 ~ 55°C (charge)
  -20 ~ 55°C (discharge)
  Max.operating altitude
  3000 m
  Ambiente
  Indoor
T-HR84.4 / T-HR84.4P
- SYSTEM SPECIFICATION

  Module quantities
  11
  Nominal energy
  84.4 kWh
  Tensão nominal
  563.2 V
  Max. charge / discharge current
  150 A
  Rated Potência
  50.6 kW
- BATTERY MODULE

  BATERIA
  TB-HR76
  Nominal energy
  7.68 kWh
  Tensão nominal
  51.2 V
  Rated capacity
  150 Ah
  Dimensões (W × H × D)
  450 × 180 × 580 mm
  Peso
  60 kg
- LIMITE AMBIENTAL

  Operating temperature range
  0 ~ 55°C (charge)
  -20 ~ 55°C (discharge)
  Max.operating altitude
  3000 m
  Ambiente
  Indoor
T-HR92.1 / T-HR92.1P
- SYSTEM SPECIFICATION

  Module quantities
  12
  Nominal energy
  92.1 kWh
  Tensão nominal
  614.4 V
  Max. charge / discharge current
  150 A
  Rated Potência
  55.2 kW
- BATTERY MODULE

  BATERIA
  TB-HR76
  Nominal energy
  7.68 kWh
  Tensão nominal
  51.2 V
  Rated capacity
  150 Ah
  Dimensões (W × H × D)
  450 × 180 × 580 mm
  Peso
  60 kg
- LIMITE AMBIENTAL

  Operating temperature range
  0 ~ 55°C (charge)
  -20 ~ 55°C (discharge)
  Max.operating altitude
  3000 m
  Ambiente
  Indoor
T-HR99.8 / T-HR99.8P
- SYSTEM SPECIFICATION

  Module quantities
  13
  Nominal energy
  99.8 kWh
  Tensão nominal
  665.6 V
  Max. charge / discharge current
  150 A
  Rated Potência
  59.8 kW
- BATTERY MODULE

  BATERIA
  TB-HR76
  Nominal energy
  7.68 kWh
  Tensão nominal
  51.2 V
  Rated capacity
  150 Ah
  Dimensões (W × H × D)
  450 × 180 × 580 mm
  Peso
  60 kg
- LIMITE AMBIENTAL

  Operating temperature range
  0 ~ 55°C (charge)
  -20 ~ 55°C (discharge)
  Max.operating altitude
  3000 m
  Ambiente
  Indoor
T-HR107.5 / T-HR107.5P
- SYSTEM SPECIFICATION

  Module quantities
  14
  Nominal energy
  107.5 kWh
  Tensão nominal
  716.8 V
  Max. charge / discharge current
  150 A
  Rated Potência
  64.5 kW
- BATTERY MODULE

  BATERIA
  TB-HR76
  Nominal energy
  7.68 kWh
  Tensão nominal
  51.2 V
  Rated capacity
  150 Ah
  Dimensões (W × H × D)
  450 × 180 × 580 mm
  Peso
  60 kg
- LIMITE AMBIENTAL

  Operating temperature range
  0 ~ 55°C (charge)
  -20 ~ 55°C (discharge)
  Max.operating altitude
  3000 m
  Ambiente
  Indoor
