C & I Batteries

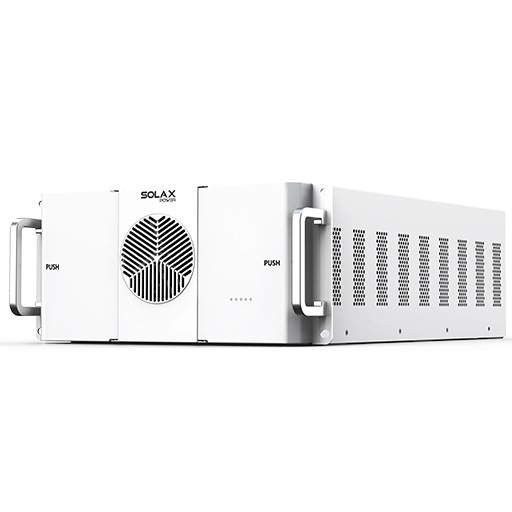

TB-HR140

  • 14.3kWh | LFP 280Ah | IP20

Equipped with a 14.3 kWh LFP battery in a 1P16S configuration, this C&I battery TB-HR140 delivers solid energy storage capabilities. It operates at a nominal voltage of 51.2 V, with a wide voltage range of 40 V to 58.4 V, ensuring reliable performance in diverse environments.

Product Advantage

The TB-HR140 excels in versatility and durability, supporting a wide operating temperature range from -20°C to 53°C and relative humidity levels from 0% to 95%. Its robust design is suitable for high-altitude locations up to 3000 meters, with IP20-rated ingress protection ensuring safety and reliability. The unit also supports seamless communication with power conversion systems (PCS) through a CAN interface, simplifying integration and monitoring.

Contact Us

Safe & Durable

  • Utilizes 280Ah Lithium Iron Phosphate (LFP) batteries for enhanced safety, longevity, and efficiency.

  • Operates in temperatures from -20°C to 53°C and relative humidity levels of 0-95%, with a maximum operating altitude of 3000 meters.

  • Weight of 115 kg, charge/discharge rate of ≤ 0.5C, and ingress protection rating of IP20 ensure durability and reliable performance.


Flexibility

  • Battery capacity of 14.3 kWh, expandable and adaptable with a 1P16S configuration.

  • Available in wall-mounted and floor-mounted configurations to suit different installation needs.


Compact Dimensions

  • 461 × 228 × 778 mm, providing a compact and space-efficient solution.


CAN Communication

  • Utilizes Controller Area Network (CAN) for reliable and efficient communication with Power Conversion Systems (PCS).


Product Parameters

  • TB-HR140
  • TB-HR140
    • BATTERY MODULE
      Tipo de Bateria LFP 280Ah
      Battery capacity14.3 kWh
      Battery configuration1P16S
      Rated battery Tensão51.2 V
      Battery Tensão range40 ~ 58.4 V
      Charge / discharge rate≤ 0.5 C


    • LIMITE AMBIENTAL
      Peso115 kg
      Dimensions (W × H × D)461 × 228 × 778 mm
      Proteção de entrada IP20
