Battery Accessories

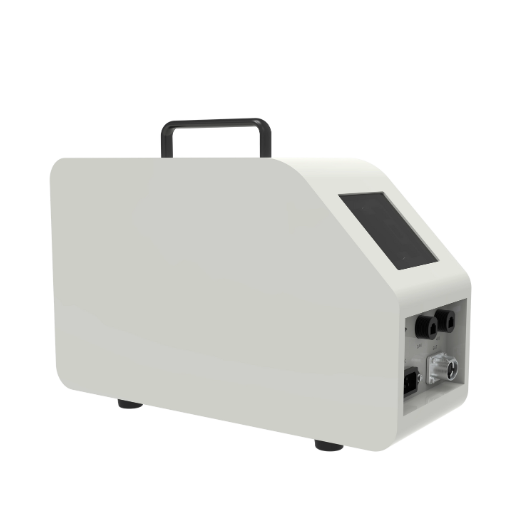

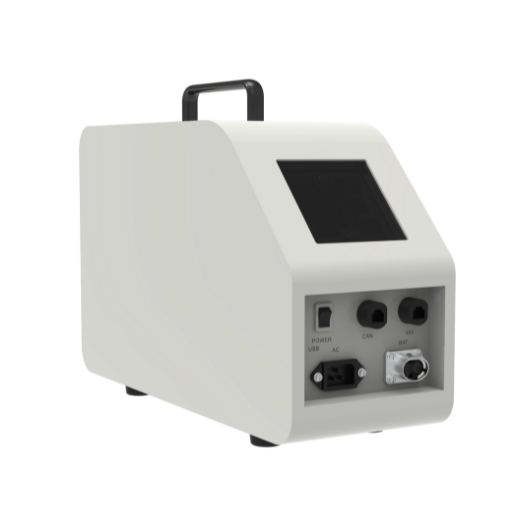

T-BAT-CHARGER

  • BAT System Solution

Its direct charging bypasses inverters for faster power-up, while built-in overcharge protection extends battery life. With synchronized SOC display and the ability to charge two batteries simultaneously, this charger maximizes uptime and safety—ideal for sustainable, high-performance energy systems.

Product Advantage

Powered by precision charge control and efficient series charging, the T-BAT-CHARGER ensures accurate state-of-charge (SOC) management with just 1% variance. Designed to support global voltage standards (180-264V), it’s the perfect fit for users around the world who demand smart energy solutions.

Contact Us

Instant Power-Up

  • Direct charging, by passing inverters – efficient and straightforward

Global Voltage Range

  • Designed for 180-264V compatibility – suitable for worldwide use.

Precise Charge Control

Offers 1% precision in charge control, enabling uniform SOC across multiple batteries.

Local Visual Display

  • Streamlined setup and easy configuration - synchronize SOC across batteries effortlessly

Efficient Series Charging

  • Supports two batteries charging in series – halving waiting times.

Safety First

  • Embedded with overcharge protection – promotes safe, sustainable battery  usage.

Product Parameters

  • T-BAT-CHARGER
  • T-BAT-CHARGER
    • ELECTRICAL CHARACTERISTICS
      Max. AC Input Apparent Potência [VA]2200
      Max. AC Input Current [A]10
      Nominal AC Tensão (AC Tensão Range) [V]220 (180~264)
      Nominal Grid Frequency Range [Hz]47-63
      Efficiency [%]90


    • OPERATING CONDITIONS
      Enclosure ProtectionIP20
      Cooling TypeSmart Cooling


    • ADAPTABILITY
      Compatible BatteriesT-BAT-SYS-HV-5.0, T-BAT-SYS-HV-R25/36, T-BAT-SYS-HV-3.0 V1/V2, T-BAT-5.8 V1/V2, T-BAT-SYS-HV-4.5/6.3, T-BAT-SYS-HV-S25/36
    • SPECIFICATION
      Dimensions(W × H × D)150 × 256 × 402 mm
      Peso7.1 kg
