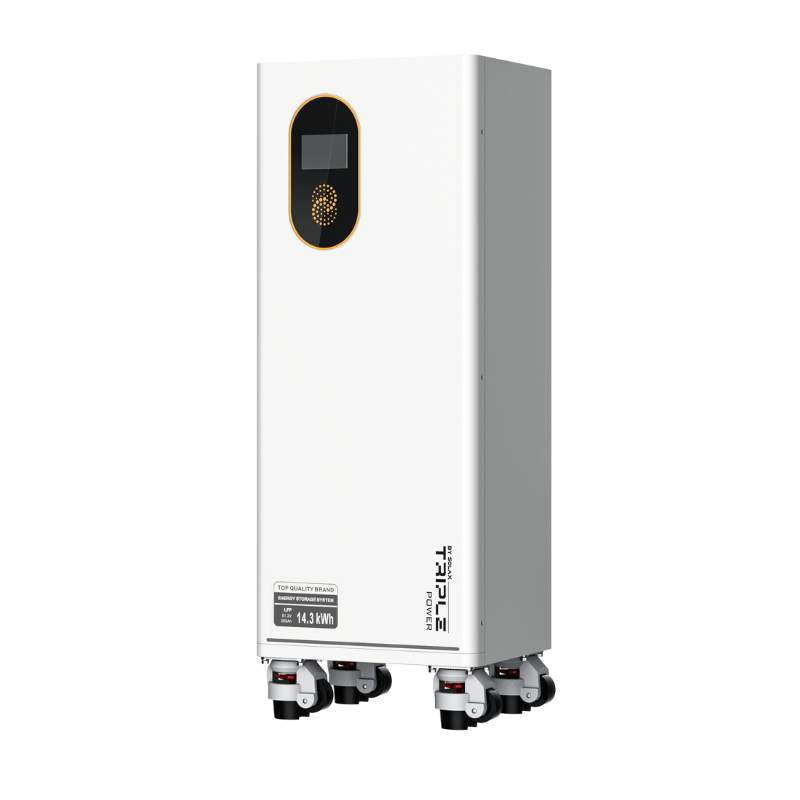

Residential Batteries

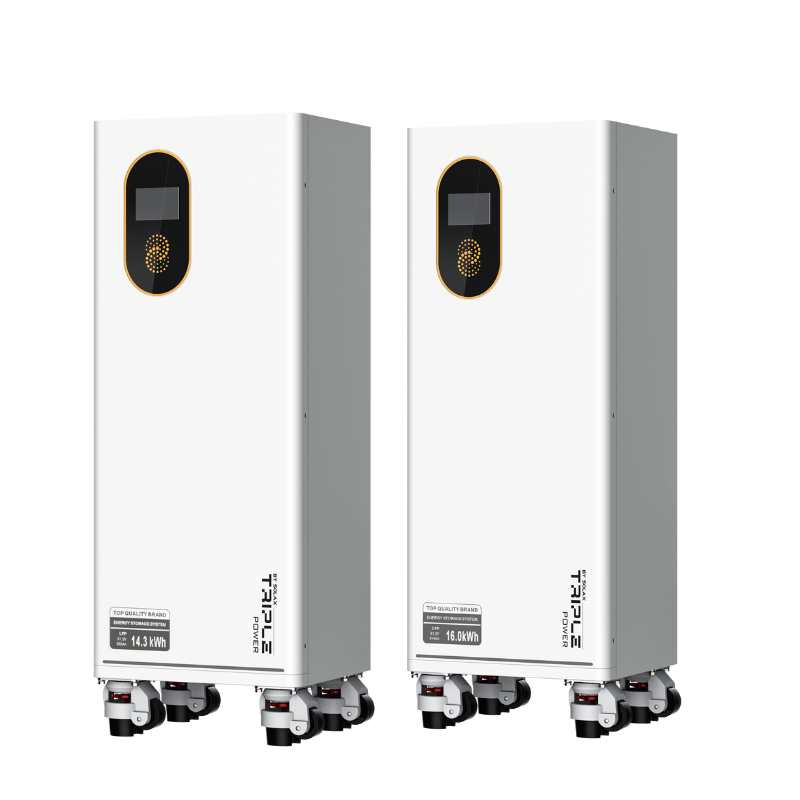

TSYS-LD160+TSYS-LD143
-
14.3kWh / 16.0kWh
This high-performance energy storage system delivers a wide capacity range of up to 256 kWh (LD160) and a maximum discharge current of 220A, supported by a cycle life of over 8,000 cycles. It ensures assured reliability with its LFP battery cells, IP40 protection, and integrated aerosol fire suppression system. The unit also features smart remote management and a flexible, expandable design with CTP technology for superior energy density and easier installation.
Product Advantage
Designed for smart and user-friendly operation, this system allows for remote monitoring, diagnostics, and upgrades, complemented by an intuitive LCD touchscreen. It offers exceptional flexibility, supporting expansion up to 16 units in parallel and featuring a pulley system for convenient installation. Beyond its adaptability, it doesn’t compromise on performance or safety, providing high capacity, long cycle life, LFP cells, and precision fire protection.
Assured Reliability
IP40 ingress protection
LFP battery cell & high-performance processors
Aerosol fire suppression for precise protection
Smart Management
Remote fault diagnosis, upgrade and maintenance
Wide temperature tolerance
User-friendly LCD touchscreen for intuitive and easy interaction
High Performance
16 ~ 256 kWh (LD160) / 14.3 ~ 229.3 kWh (LD143) wide capacity range
Max. 155 A / 220 A (LD160), 140 A / 225 A ( LD143) charge / discharge current
Cycle life > 8000 cycles
Flexible Adaptability
Expandable to 16 units in parallel
CTP (Cell-to-Pack) design maximizes space and energy density for superior performance
Pulley design enables more convenient installation
Product Parameters
-
TSYS-LD143-
LIMITE AMBIENTAL INFORMATION
Tipo de Bateria LFP Scalability Max. 16 pcs in parallel Nominal energy 14.3 kWh Rated Potência 7.1 kW Max. charge / discharge current 140 A / 225 A Depth of discharge 95% Dimensões (W × H × D) 356 x 953 x 289mm Peso líquido 115.5 kg -
AmbienteAL REQUIREMENTS
Conceito de arrefecimento Convecção natural Max. operating altitude 3000 m Installation type Floor mounting Proteção de entrada IP40
-
-
TSYS-LD160
-
LIMITE AMBIENTAL INFORMATION
Tipo de Bateria LFP Scalability Max. 16 pcs in parallel Nominal energy 16 kWh Rated Potência 7.9 kW Max. charge / discharge current 155 A / 220 A Depth of discharge 95% Dimensões (W × H × D) 356 x 953 x 289mm Peso líquido 118.5 kg -
AmbienteAL REQUIREMENTS
Conceito de arrefecimento Convecção natural Max. operating altitude 3000 m Installation type Floor mounting Proteção de entrada IP40
-
