Residential Batteries

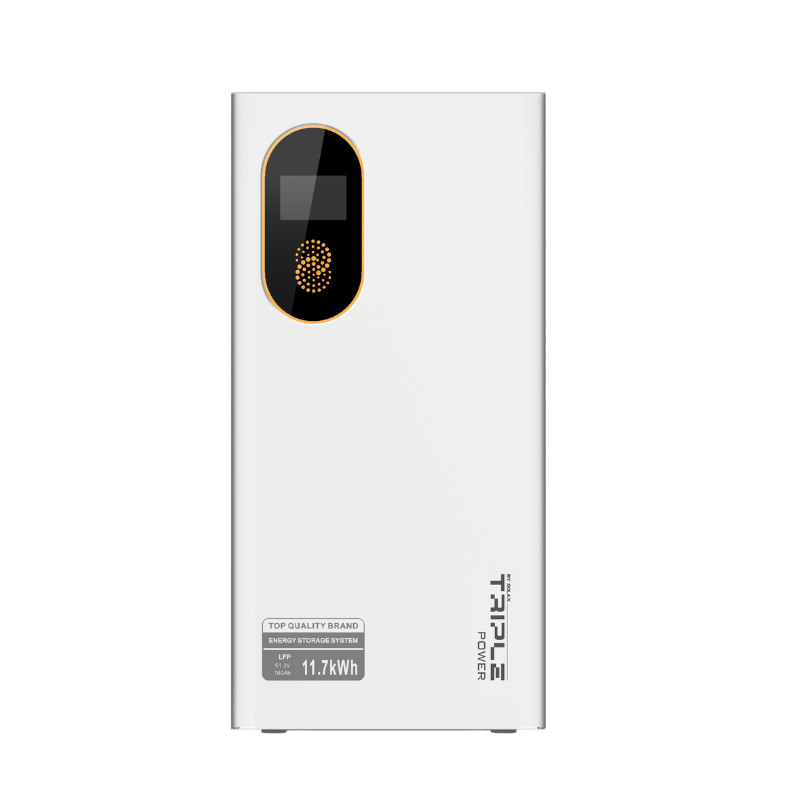

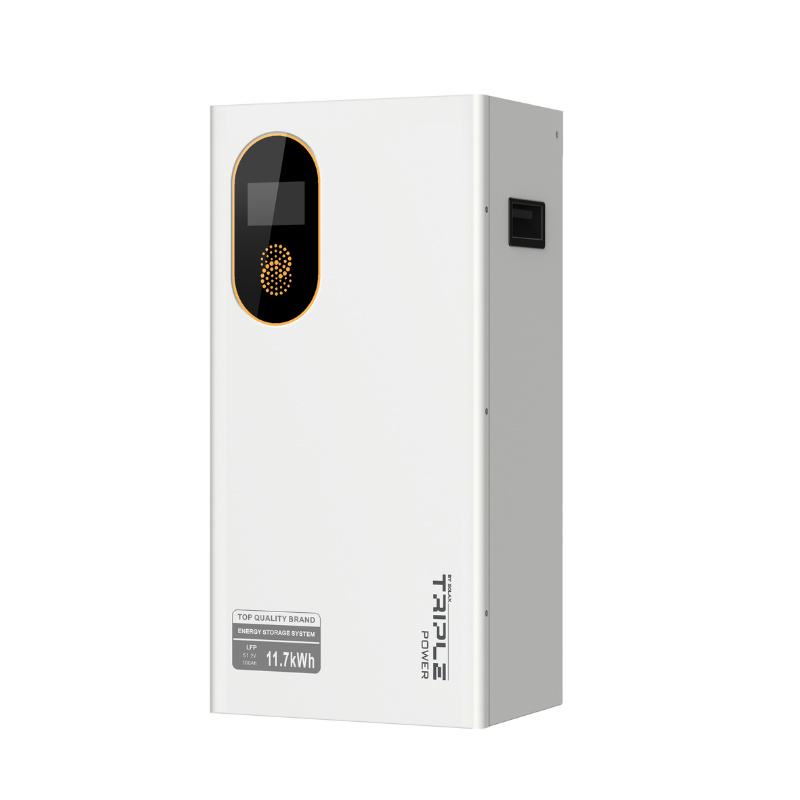

TSYS-LD117

11.7 kWh

This energy storage system offers a comprehensive solution with a wide capacity range of 11.7 to 187.2 kWh and high charge/discharge currents of up to 250 A. It is engineered for longevity, supporting over 6000 cycles, and features smart management capabilities including remote diagnostics and an intuitive LCD touchscreen. The system ensures reliability through its IP40 protection, robust LFP battery cells, and integrated aerosol fire suppression. Additionally, it provides flexible scalability by supporting parallel expansion of up to 16 units and utilizes a compact CTP design to optimize space and energy density.

Download de Dados

Product Advantage

Distinguished by its high performance and extended cycle life, this system delivers superior reliability and adaptability. It enables significant expansion potential and maximizes energy efficiency through advanced CTP technology. User-friendly smart management—including remote maintenance and a wide operating temperature range—ensures effortless operation, while built-in safety features such as fire suppression and high-grade protection offer peace of mind for diverse applications.

High Performance

11.7 ~ 187.2 kWh wide capacity range
Max. 230 A / 250 A charge / discharge current
Cycle life > 6000 cycles

Smart Management

Remote fault diagnosis, upgrade and maintenance
Wide temperature tolerance
User-friendly LCD touchscreen for intuitive and easy interaction

Assured Reliability

IP40 ingress protection
LFP battery cell & high-performance processors
Aerosol fire suppression for precise protection

Flexible Adaptability

Expandable to 16 units in parallel
CTP (Cell-to-Pack) design maximizes space and energy density for superior performance

Product Parameters

TSYS-LD117

TSYS-LD117

LIMITE AMBIENTAL INFORMATION

Tipo de Bateria	LFP
Scalability	Max. 16 pcs in parallel
Nominal energy	11.7 kWh
Rated Potência	5.8 kW
Max. charge / discharge current	230 A / 250 A
Depth of discharge	95%
Dimensões (W × H × D)	355 x 726 x 263 mm
Peso líquido	88 kg

AmbienteAL REQUIREMENTS

Conceito de arrefecimento
Convecção natural
Max. operating altitude
3000 m
Installation type
Wall mounting / floor mounting
Proteção de entrada
IP40
