Residential Batteries

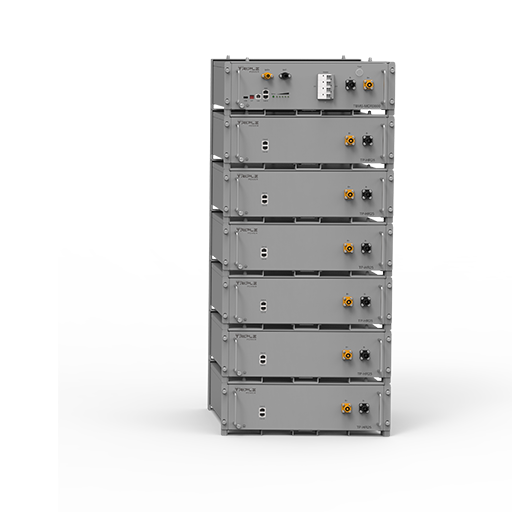

T-BAT-SYS-HV-R3.6
-
7.3 kWh-47.8 kWh
The T-BAT-SYS-HV-R3.6 is designed for ease of installation and space efficiency, making it perfect for tight areas. With expandability from 7.3kWh to 47.8kWh per stack, this battery offers scalable energy storage to meet growing energy needs.
Product Advantage
The T-BAT-SYS-HV-R3.6 offers exceptional longevity, with a cycle life exceeding 6000 cycles. It supports up to 50A charging/discharging current, ensuring robust power handling for a variety of applications.
Assured Reliability
LiFePO4 battery cell (72Ah)
No toxic heavy metals or caustic materials
High Performance
Max. 50A charging / discharging current
Cycle life > 6000 times
Smart Management
Remote fault diagnosis, upgrade and maintenance
Flexible Adaptability
Space-efficient design enables straightforward installation in tight areas
Extendable from 7.3kWh to 47.8kWh per string
Product Parameters
-
T-BAT-SYS-HV-R3.6-
SYSTEM PARAMETERS
System capacity 2 ~ 13 Batteries Tensão range 89.6 ~ 759.2 V Corrente máx. de carga / descarga 50 A
Protection class IP20 -

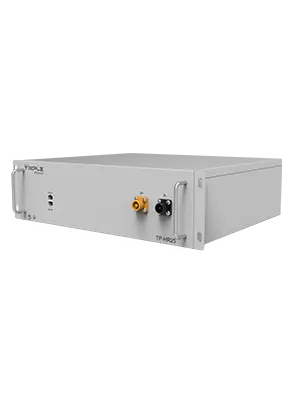

BATTERY MODULE
Tipo de Bateria Iões de lítio (LFP) Tensão nominal 51.2 V Operating Tensão 44.8 ~ 58.4 V Nominal Potência 1.7 kW Peso 31 kg Dimensions (L × W × H) 442 × 391 × 130 mm
-

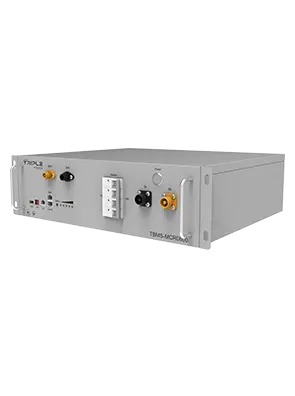

BMS
Model TBMS-MCR0800 Dimensions (L × W × H) 442 × 391 × 130 mm Peso 8 kg
-
Download de Dados
-
Folha de Dados
-
Declaração
-
Nome do ArquivoIdiomaFormatoTamanhoÚltima atualizaçãoDownload
