Monitoring Device

Pocket Dongle

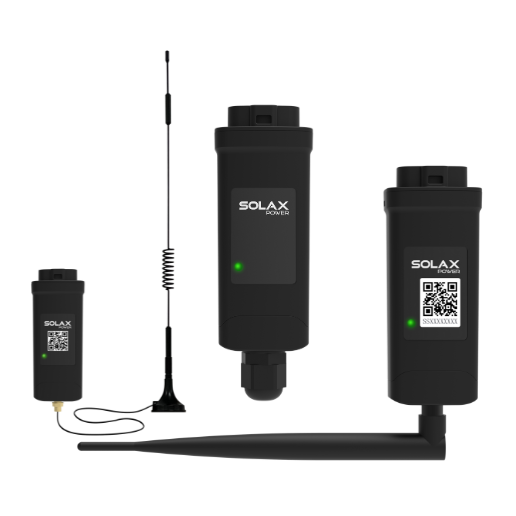

  • Pocket WiFi V3.0-P / Pocket WiFi+LAN / Pocket WiFi+4GM

The Pocket Series by SolaX—including Pocket WiFi V3.0-P, Pocket WiFi+LAN, and Pocket WiFi+4GM—features a sleek, plug-and-play form factor with robust IP65 waterproof and dustproof protection. These models adapt effortlessly to deliver uninterrupted communication between your solar system and the cloud.

Product Advantage

The SolaX Pocket communication devices offer fast 10-second live data refresh, offline data storage and resume. The SolaX Pocket series are ideal for scalable solar and energy applications.

Contact Us

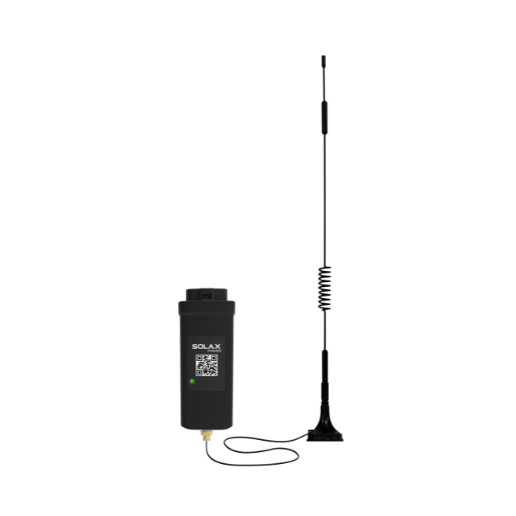

Pocket WiFi+4GM

  • Quick installation with "Plug & Play" function

  • IP65 dust prevention and waterproof design

  • Stable data transmission and good reliability

  • Offline data storage and resume

  • 10-second live data monitoring

  • Modbus TCP support

  • IEEE2030.5 support*

Pocket WiFi+LAN

  • Quick installation with "Plug & Play" function

  • IP65 dust prevention and waterproof design

  • Stable data transmission and good reliability

  • Offline data storage and resume

  • 10-second live data monitoring

  • Modbus TCP support

  • IEEE2030.5 support*

  • OpenADR support*

  • Supports automatic switching between WiFi and LAN in different scenarios

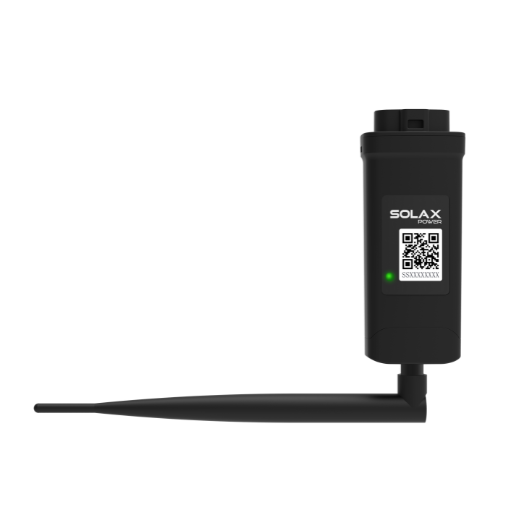

Pocket WiFi V3.0-P

  • Quick installation with "Plug & Play" function

  • IP65 dust prevention and waterproof design

  • Stable data transmission and good reliability

  • Offline data storage and resume

  • Multiple antenna adaptations according to the situation

  • 10-second live data monitoring

  • Modbus TCP support

  • IEEE2030.5 support*

  • OpenADR support*

Product Parameters

  • Pocket WiFi+4GM
  • Pocket WiFi+LAN
  • Pocket WiFi V3.0-P
  • Pocket WiFi+4GM
    • MECHANICAL DATA
      Dimensions(W × H × D)112 x 45.7 x 28.5 mm
      Peso124 ± 10 g


    • COMMUNICATION FEATURES
      Wireless moduleWiFi 2.4 GHz
      Antenna gain3 dBi
      Data transfer interval5 mins / 10s optional


    • AmbienteAL & PROTECTION
      Operating temperature range-35°C ~ +60°C
      Grau de proteçãoIP65


  • Pocket WiFi+LAN
    • MECHANICAL DATA
      Dimensions(W × H × D)112 x 45.7 x 28.5 mm
      Peso80 ± 10 g


    • COMMUNICATION FEATURES
      Wireless moduleWiFi 2.4 GHz
      Antenna gain3 dBi
      Data transfer interval5 mins / 10s optional


    • AmbienteAL & PROTECTION
      Operating temperature range-35°C ~ +60°C
      Grau de proteçãoIP65


  • Pocket WiFi V3.0-P
    • MECHANICAL DATA
      Dimensions(W × H × D)112 x 45.7 x 28.5 mm
      Peso107 ± 10 g


    • COMMUNICATION FEATURES
      Wireless moduleWiFi 2.4 GHz
      Antenna gain3 dBi
      Data transfer interval5 mins / 10s optional


    • AmbienteAL & PROTECTION
      Operating temperature range-35°C ~ +60°C
      Grau de proteçãoIP65


Download de Dados

  • Folha de Dados
  • Manual do Usuário
  • Guia da Instalação Rápida
  • Declaração
