Residential Batteries

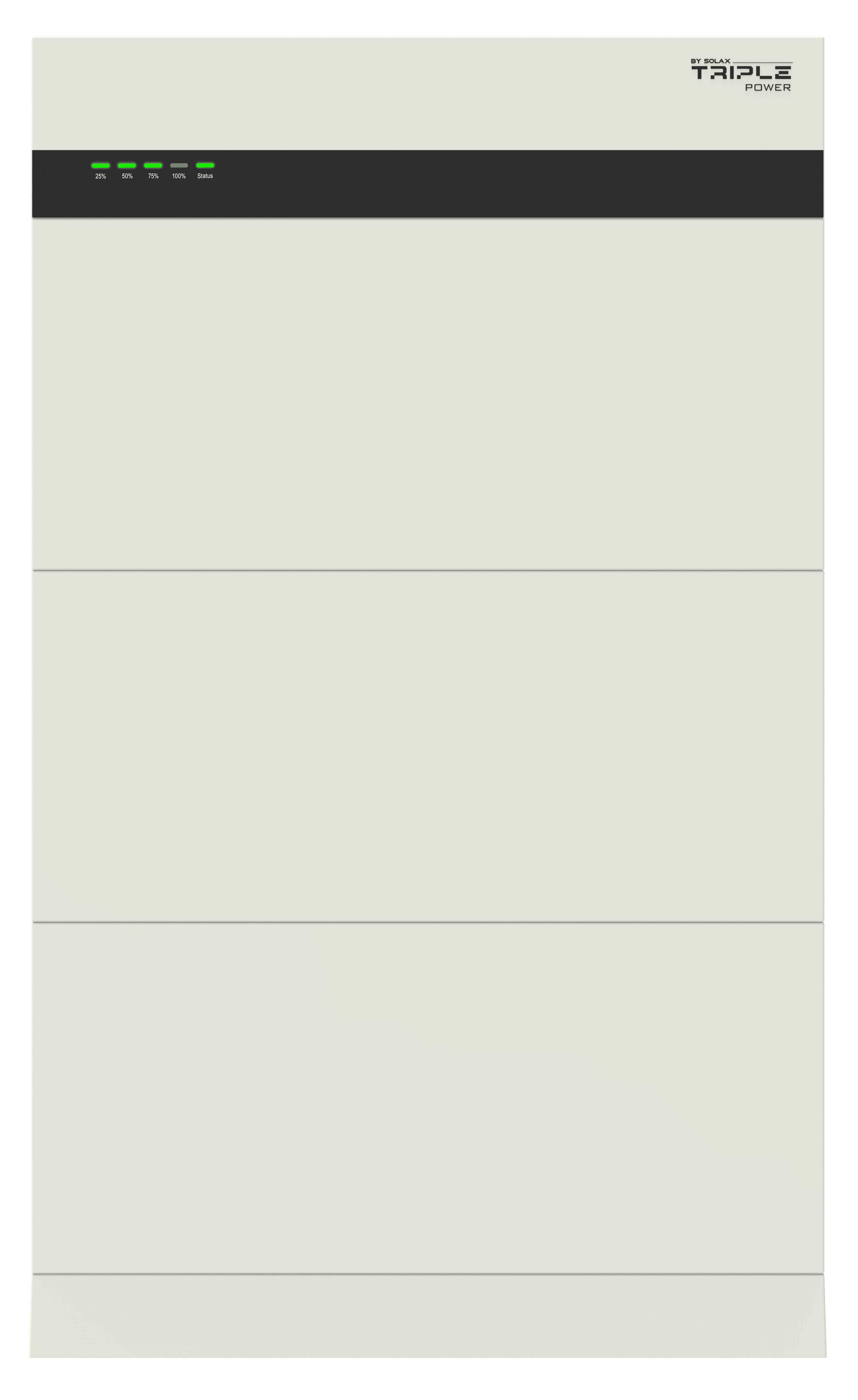

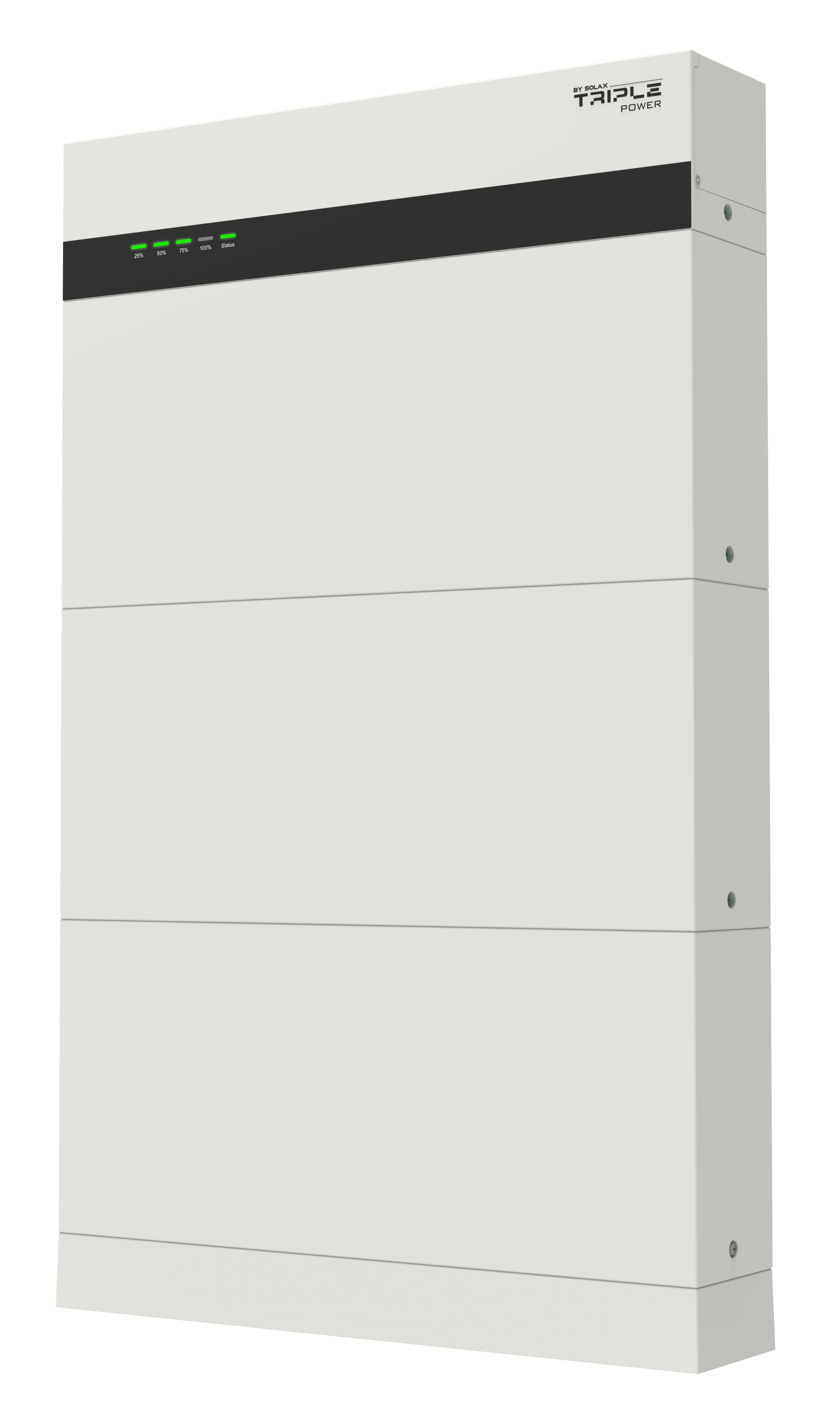

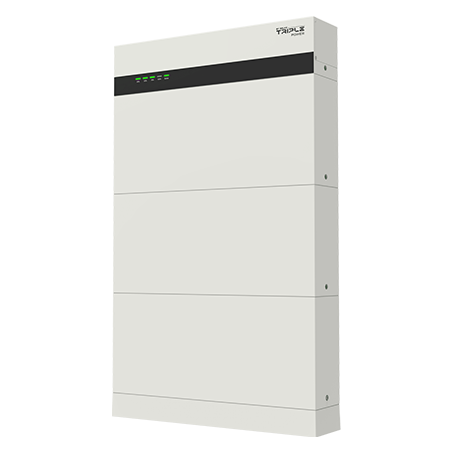

HS50E-D

  • 5.1 kWh-92.1 kWh

The HS50E-D features a modular design with flexible capacity expansion from 5.12kWh up to 92.16kWh, ideal for evolving energy needs. Lightweight and compact, it supports both wall and floor mounting and is compatible with SolaX single and three-phase inverters, ensuring broad installation adaptability.

Product Advantage

The HS50E-D supports 50A charge/discharge current and operates in extreme temperatures from -30°C to 53°C. With an IP66 rating, cobalt-free LFP battery, and advanced AI-driven SOC/SOH algorithms, it delivers long-lasting energy storage with smart management and OTA upgrades.

Contact Us

Easy Installation & Compatibility

  • Lightweight, compact, and easy to set up

  • Available in wall-mounted or floor-mounted options

  • Fit a wide range of SolaX single and three-phase inverters


High Performance

  • Max. 50A charge/discharge current

  • -30°C to 53°C operational range with advanced heating technology

  • Higher SOC/SOH accuracy through AI battery model algorithms

  • Automotive-grade cell sampling chips for superior stability and safety


Safety & Reliability

  • Certified IP66 for outstanding protection

  • Cobalt-free LFP battery: safe, long-lasting, efficient, high energy density

  • A robust cycle life of over 6,000 times, ensuring longevity and reliability


Flexibility

  • Modular design, flexible expansion

  • Start with 5.12kWh, expand up to 92.16kWh


Product Parameters

  • T-BAT HS 5
  • T-BAT HS 10
  • T-BAT HS 15
  • T-BAT HS 20
  • T-BAT HS 25
  • T-BAT HS 30
  • T-BAT HS 5
    • SYSTEM SPECIFICATION
      Número de Módulos1 Module
      Norminal capacity [kWh]5.1
      Tensão nominal [V]102.4
      Potência Norma [kW]

      3

      Corrente máx. de carga / descarga (A)50
      Dimensions (L × W × H) [mm]730*150*558


    • LIMITE AMBIENTAL
      Dimensão (L × A × P) [mm]730*150*165
      BMS Peso [kg]9.7
      Tipo de Bateria Iões de lítio (LFP)
      Battery module [kWh]5.1
      Battery module dimensions (L × W × H) [mm]730*150*318
      Battery module Peso [kg]47


    • AmbienteAL REQUIREMENTS
      AmbienteExterior / interior (*Please refer to the user manual for installation condition)
      Proteção de entradaIP66


  • T-BAT HS 10
    • SYSTEM SPECIFICATION
      Número de Módulos2 Module
      Norminal capacity [kWh]10.2
      Tensão nominal [V]204.8
      Potência Norma [kW]

      6.1

      Corrente máx. de carga / descarga (A)50
      Dimensions (L × W × H) [mm]730*150*876


    • LIMITE AMBIENTAL
      Dimensão (L × A × P) [mm]730*150*165
      BMS Peso [kg]9.7
      Tipo de Bateria Iões de lítio (LFP)
      Battery module [kWh]5.1
      Battery module dimensions (L × W × H) [mm]730*150*318
      Battery module Peso [kg]47


    • AmbienteAL REQUIREMENTS
      AmbienteExterior / interior (*Please refer to the user manual for installation condition)
      Proteção de entradaIP66


  • T-BAT HS 15
    • SYSTEM SPECIFICATION
      Número de Módulos3 Module
      Norminal capacity [kWh]15.3
      Tensão nominal [V]307.2
      Potência Norma [kW]

      9.2

      Corrente máx. de carga / descarga (A)50
      Dimensions (L × W × H) [mm]730*150*1194


    • LIMITE AMBIENTAL
      Dimensão (L × A × P) [mm]730*150*165
      BMS Peso [kg]9.7
      Tipo de Bateria Iões de lítio (LFP)
      Battery module [kWh]5.1
      Battery module dimensions (L × W × H) [mm]730*150*318
      Battery module Peso [kg]47


    • AmbienteAL REQUIREMENTS
      AmbienteExterior / interior (*Please refer to the user manual for installation condition)
      Proteção de entradaIP66


  • T-BAT HS 20
    • SYSTEM SPECIFICATION
      Número de Módulos4 Modules
      Norminal capacity [kWh]20.4
      Tensão nominal [V]409.6
      Potência Norma [kW]

      12.2

      Corrente máx. de carga / descarga (A)50
      Dimensions (L × W × H) [mm]

      730*150*1194

      730*150*491


    • LIMITE AMBIENTAL
      Dimensão (L × A × P) [mm]730*150*165
      BMS Peso [kg]9.7
      Tipo de Bateria Iões de lítio (LFP)
      Battery module [kWh]5.1
      Battery module dimensions (L × W × H) [mm]730*150*318
      Battery module Peso [kg]47


    • AmbienteAL REQUIREMENTS
      AmbienteExterior / interior (*Please refer to the user manual for installation condition)
      Proteção de entradaIP66


  • T-BAT HS 25
    • SYSTEM SPECIFICATION
      Número de Módulos5 Modules
      Norminal capacity [kWh]25.6
      Tensão nominal [V]512
      Potência Norma [kW]

      15.3

      Corrente máx. de carga / descarga (A)50
      Dimensions (L × W × H) [mm]

      730*150*1194

      730*150*809


    • LIMITE AMBIENTAL
      Dimensão (L × A × P) [mm]730*150*165
      BMS Peso [kg]9.7
      Tipo de Bateria Iões de lítio (LFP)
      Battery module [kWh]5.1
      Battery module dimensions (L × W × H) [mm]730*150*318
      Battery module Peso [kg]47


    • AmbienteAL REQUIREMENTS
      AmbienteExterior / interior (*Please refer to the user manual for installation condition)
      Proteção de entradaIP66


  • T-BAT HS 30
    • SYSTEM SPECIFICATION
      Número de Módulos6 Modules
      Norminal capacity [kWh]30.7
      Tensão nominal [V]614.4
      Potência Norma [kW]

      18.4

      Corrente máx. de carga / descarga (A)50
      Dimensions (L × W × H) [mm]

      730*150*1194

      730*150*1127


    • LIMITE AMBIENTAL
      Dimensão (L × A × P) [mm]730*150*165
      BMS Peso [kg]9.7
      Tipo de Bateria Iões de lítio (LFP)
      Battery module [kWh]5.1
      Battery module dimensions (L × W × H) [mm]730*150*318
      Battery module Peso [kg]47


    • AmbienteAL REQUIREMENTS
      AmbienteExterior / interior (*Please refer to the user manual for installation condition)
      Proteção de entradaIP66
